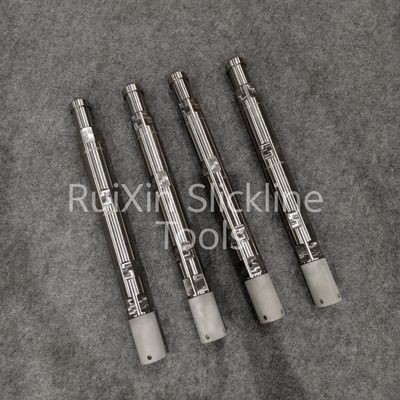

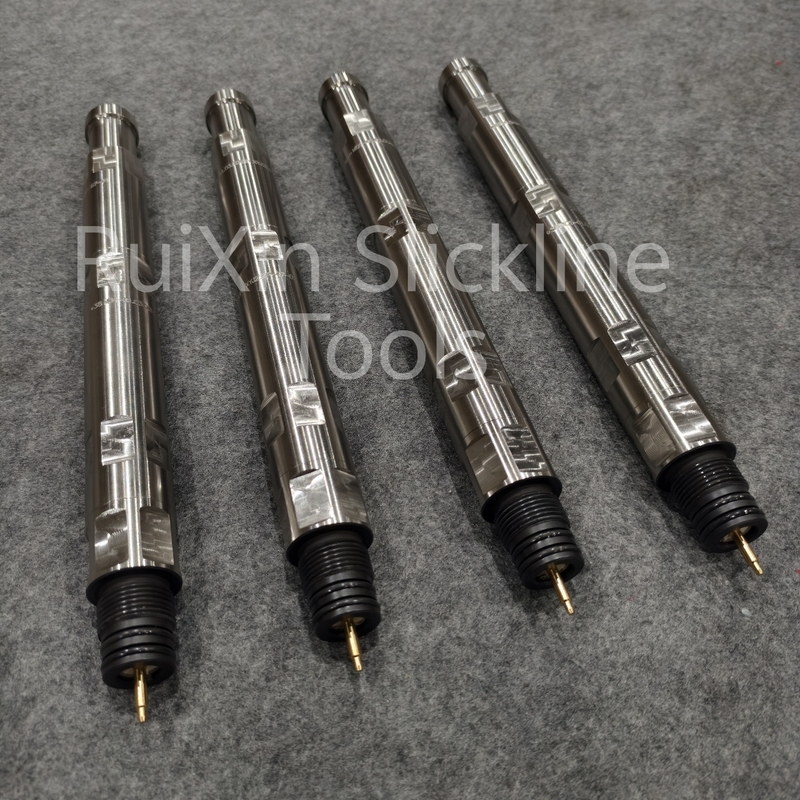

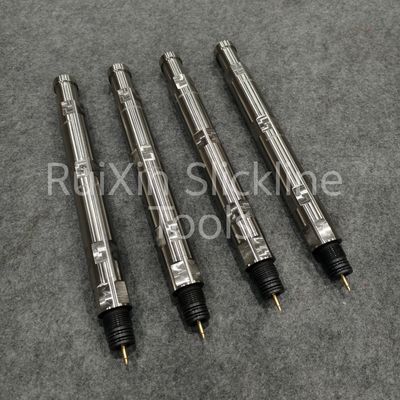

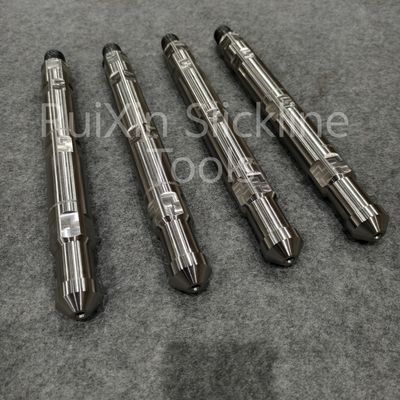

Mono-Conductor Rope Socket 1.5Inch～2.125Inch Cable Cap Slickline Toolstring

Mono-Conductor Rope Socket 1.5Inch～2.125Inch Cable Cap Slickline Toolstring

Introduction

The cable collar is a tool used to connect the cable to the logging tool string. It is the most crucial part for the connection between the cable and the tool in the cable tool.

structural features

The cable rope cap is mainly composed of the upper joint, the cone, the copper pad, the lower cylinder, the lower joint, the insulating pad, the insulating sleeve, the connection post, the screw, the lower insulating pad, the spring seat, the insulating sleeve, the spring, the lower joint and the O-ring, etc.

Top connection and lower shell It forms a bearing part together with the lower connection piece.

Use cones and copper pads to compress the armored steel wires of the cable, which serves as the load-bearing component.

The internal cable components include insulating pads, terminals, screws, lower insulating pads, spring seats, insulating sleeves, springs, etc. The insulating pads, lower insulating pads, insulating sleeves, and insulating sleeves etc. isolate the terminals, lower contacts, screws from the external housing, ensuring complete insulation between the two; the terminals and the spring seats are connected by screws and conduct electricity through the springs to the lower contacts, maintaining the circuit conductance.

Tools Can Be Manufactured To Any Size Required.

method of application

1. Remove the joint, lower cylinder body and lower connector from the cable rope cap, and take out the cone and copper pad;
2. Pass the cable through the upper connector and the cone;
3. Strip the cable armor (determine the number of steel wires to be stripped according to needs), expose at least 10 centimeters of the cable core;
4. Pass the armored steel wires through the evenly distributed small holes on the circumference of the cone in reverse, and tighten the steel wires;
5. Put on the copper pad;
6. Put the lower cylinder body over the cable, and insert the cable core through the insulating sleeve (rubber sleeve) and then into the terminal post.

7. Install the insulating sleeve; insert waterproof glue into the hole;
8. Use a vise to hold the upper connector, and grasp the lower connector with your hand. At the same time, unscrew the cylinder to assemble the three components together;
9. Test for normal conductivity and insulation;
10. Connect the remaining tools for the well test;
11. After the test, clean the outer surface, attach the protective wire for storage.

• note

1. When connecting the tools, apply lubricating grease to the threads and sealing areas;
2. Do not allow water, oil stains, etc. to drip into the conductive components to avoid affecting the insulation performance;
3. When assembling the tools, ensure the threads are aligned properly to prevent excessive deviation that could cause damage to the threads and the cables.
